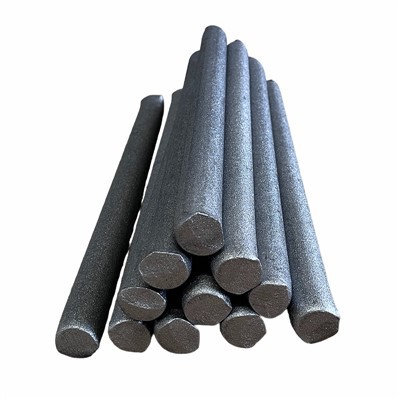

Unmatched Magnetic Performance for Demanding Electrical Applications
In electrical engineering and precision instrumentation, magnetic materials vary significantly in performance. Our inductor core iron rods, crafted from premium-grade electrical pure iron, deliver exceptional magnetic properties for critical applications where performance cannot be compromised. Unlike standard iron cores or composites, they offer unparalleled magnetic permeability and minimal core losses.
Electrical pure iron stands apart due to its extremely low carbon content and minimal impurities, resulting in enhanced soft magnetic properties-essential for efficient inductor cores. When you choose our rods, you select material with predictable, consistent performance to elevate your product's capabilities.
Key Technical Advantages
Exceptional Magnetic Permeability: Maximum relative permeability (μm) reaches 15,000 or higher, enabling compact designs without performance loss.
Low Coercive Force: Typically below 80 A/m, requiring minimal energy to magnetize/demagnetize, reducing hysteresis losses in AC applications.
High Saturation Induction: Up to 2.15 Tesla, handling high magnetic fluxes without degradation-critical for power and high-current inductors.
Minimal Core Losses: Exceptional purity reduces eddy current and hysteresis losses, vital for high-frequency efficiency.
Technical Specifications
| Property | Value Range | Test Standard |
|---|---|---|
| Maximum Relative Permeability (μm) | 12,000 - 20,000 | ASTM A341 |
| Coercive Force (Hc) | 65 - 80 A/m | ASTM A341 |
| Saturation Induction (Bs) | 2.10 - 2.16 T | ASTM A341 |
| Resistivity | 12 μΩ·cm | ASTM A712 |
| Carbon Content | ≤ 0.015% | ASTM E415 |
| Density | 7.85 - 7.88 g/cm³ | ASTM B311 |
Note: Exact values may vary by product grade and manufacturing process.
Applications Where Our Inductor Core Iron Rods Excel
Power Electronics & Conversion Systems: Switched-mode power supplies, inverters, and converters benefit from stable performance and minimal losses, boosting efficiency and thermal management.
Telecommunications Equipment: Filters, chokes, and RF inductors in communication devices rely on consistent performance and reliability.
Precision Measuring Instruments: Laboratory equipment, test tools, and sensors use predictable magnetic behavior for accuracy and repeatability.
Automotive Electronics: Engine control units, power management systems, and safety components gain reliability from our cores.
Industrial Control Systems: Motor drives and automation controllers perform reliably in harsh environments where failure is not an option.
Manufacturing Excellence: Why Our Pure Iron Stands Apart
Our process begins with rigorously purified raw materials to eliminate performance-compromising elements. Precise control of melting, forging, and annealing optimizes crystalline structure and purity.
Critical Annealing Process: Controlled atmosphere annealing eliminates residual stresses and optimizes magnetic domain structure, ensuring consistent performance across production batches.
Selection Guide: Choosing the Right Grade
We offer grades tailored to application demands:
Standard Grade: Ideal for general-purpose applications requiring excellent magnetic properties without extreme performance needs.
Premium Grade: Enhanced permeability and lower coercive force for demanding uses (precision instruments, high-efficiency power conversion).
Ultra-Pure Grade: Minimum core losses and maximum permeability for critical applications, regardless of cost.
Our technical team helps select the most cost-effective solution for your needs.
Design Considerations for Optimal Performance
Core Geometry: Diameter and length impact inductance and saturation. Our engineers guide optimal dimensions.
Operating Frequency: Excellent at low-to-moderate frequencies; special considerations for >10 kHz applications.
Thermal Management: Proper heat dissipation is critical in high-power applications to maintain magnetic properties.
Assembly Handling: Avoid mechanical stresses during assembly, as work hardening degrades performance.
Comparative Analysis: Pure Iron vs. Alternatives
| Material | Key Advantage vs. Pure Iron | Limitation vs. Pure Iron |
|---|---|---|
| Silicon Steel | Lower high-frequency losses | Lower saturation induction and permeability at low frequencies. |
| Powder Cores | High-frequency performance | Inferior permeability and saturation for high energy storage. |
| Ferrites | Very high-frequency performance | Much lower saturation (0.3-0.5 T), limiting power applications. |
Quality Assurance and Consistency
Every batch undergoes rigorous testing:
Chemical composition verification (optical emission spectroscopy)
Magnetic property testing under standardized conditions
Dimensional accuracy checks
Surface quality inspection
Compliance certification with international standards
This ensures predictable performance, batch after batch.
Frequently Asked Questions
Q: What is the maximum operating temperature?
A: Standard rods perform reliably up to 150°C; special grades are available for higher temperatures.
Q: Can you provide custom sizes?
A: Yes, custom manufacturing (non-standard diameters/lengths) is available for volume orders.
Q: How does machining affect magnetic properties?
A: Machining introduces stresses; we recommend stress-relief annealing after machining for critical applications.
Q: Are technical data sheets available?
A: Comprehensive data sheets for all standard grades are available upon request.
Q: What packaging options exist?
A: Solutions range from individual protective wrapping to custom palletizing for large orders.
Why Choose Our Inductor Core Iron Rods?
Technical Expertise: Decades of experience in magnetic materials, with support from design to production.
Consistent Quality: Rigorous manufacturing and QC reduce design risks.
Custom Solutions: Tailored to your needs, not one-size-fits-all.
Global Logistics: Strategically located distribution centers ensure timely delivery worldwide.
Sustainable Practices: Energy-efficient, waste-reducing manufacturing processes.
Get Started with Our Inductor Core Iron Rods
Elevate your product performance with premium electrical pure iron cores. Contact our technical sales team to discuss requirements, request samples, or get a quotation.
For immediate assistance:
Call our engineering support hotline
Email us with your specifications
Let us demonstrate how our inductor core iron rods enhance your product's performance and reliability.
