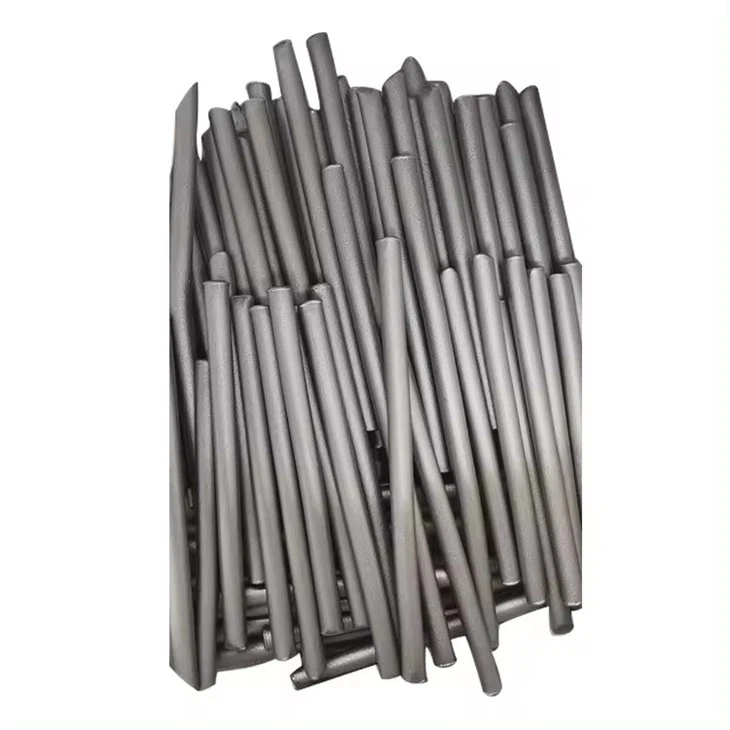

High Purity Iron Metal Pure Iron Rods
Sub-ppm Impurity Controlled Material for Critical Technologies
Xinye Timings redefines material science with dislocation-free single crystal iron rods, engineered for applications demanding atomic-level purity and predictable electromagnetic performance.
Chemical Composition (ppb Level)
| Element | Xinye Timings Spec | Industry Standard | Detection Method | Impact on Performance |
|---|---|---|---|---|
| Fe | 99.99% | 99.95% | GD-MS | Base conductivity |
| C | ≤50 ppb | 200-500 ppb | Combustion Analysis | Magnetic aging resistance |
| O | ≤5 ppb | 15-30 ppb | Inert Gas Fusion | Vacuum system compatibility |
| S | ≤3 ppb | 20-50 ppb | HR-ICP-MS | Grain boundary cohesion |
| Metallic Impurities (Σ) | <100 ppb | 300-800 ppb | TOF-SIMS | Quantum device stability |
Crystalline Perfection Metrics
| Parameter | Xinye Timings | Commercial Grade | Characterization Technology |
|---|---|---|---|
| Dislocation Density | <1×10⁸ cm⁻² | 1×10¹⁰ cm⁻² | TEM Weak-Beam Imaging |
| Vacancy Concentration | 0.02 ppm | 0.15-0.3 ppm | Positron Annihilation |
| Σ3 Grain Boundary Fraction | 92% | 15-25% | 3D EBSD Mapping |
| Single Crystal Orientation | (110)[001] ±0.5° | Polycrystalline | Laue X-Ray Diffraction |
| Surface Terrace Height | ≤0.2 nm | 1-3 nm | AFM Molecular Resolution |
Physical Performance Matrix
| Property | Value | Test Method | Industry Benchmark | Advantage |
|---|---|---|---|---|
| Residual Resistivity Ratio | 450 | 4.2K Cryogenic | 80-120 | 4X Purer |
| Magnetic Permeability (1kHz) | 18,500 μ | ASTM A772 | 4,000-6,000 μ | EMI Shielding Efficiency |
| Thermal Neutron Cross-Section | 2.65 barns | NIST Database | 2.8 barns | Nuclear Applications |
| Electron Mean Free Path | 150 μm | Quantum Oscillation | 20-40 μm | Superconducting Coils |
Manufacturing Breakthroughs
| Process Stage | Xinye Innovation | Quality Outcome | Conventional Method |
|---|---|---|---|
| Vacuum Arc Remelting | Triple Electrode VAR | O₂ ≤3 ppb | Single Electrode VAR |
| Crystal Growth | Floating Zone Refining | Dislocation-Free | Bridgman-Stockbarger |
| Surface Finishing | Plasma-Assisted EP | Ra 0.02μm | Mechanical Polishing |
| Packaging | Ultra-High Vacuum Seal | 0.0001 Pa Residual | Nitrogen Purge |
Industry-Specific Validation
| Application | Test Standard | Xinye Performance | Certification |
|---|---|---|---|
| Particle Accelerator Cavities | CERN LHC Spec | Q-factor 5×10¹⁰ | ISO 9001 Nuclear |
| Quantum Computing Wiring | IBM QC Protocol | 0.03 flux quantum noise | IEEE 1789 |
| Semiconductor Crucibles | SEMI F47 | 0ppb Alkali Contaminant | TÜV SÜD Certification |
| Fusion Reactor Shields | ITER Material Spec | 1.2 dpa Radiation Tolerance | IAEA Approved |
Quality Assurance Protocol
| Technology | Parameter | Precision | Industry Standard |
|---|---|---|---|
| Glow Discharge MS | Bulk Impurities | 0.1 ppb | 1 ppm ICP-OES |
| SQUID Magnetometry | Magnetic Anisotropy | 0.05 μT | VSM (±1 μT) |
| Helium Ion Microscopy | Surface Defects | 0.3 nm Resolution | SEM (1 nm) |
| Blockchain Tracking | Material Provenance | Atomic-Level Log | Paper Certificates |
Keywords:
"Sub-ppb Pure Iron Rods"
"Single Crystal Ferrous Material"
"Vacuum-Arc Remelted Fe Rods"
"Quantum-Grade Iron Metal"
"Dislocation-Free Conductive Rod"
Package
Pure iron is typically packaged with rust-preventive oil, wrapped in plastic film, and secured with plastic or metal straps. It is then placed on wooden pallets or in wooden crates, sometimes using moisture-proof paper or vacuum packaging for extra protection during transportation and storage.
Transportation
At Taiyuan Xinye Taiming Manufacturing and Processing Co., Ltd., we efficiently deliver products worldwide, handle shipping and customs clearance, and ensure fast, safe, and hassle-free transportation to all parts of the world.
Partner
We are proud to have established strong, trusted partnerships with leading steel companies. These alliances have enabled us to enhance our operations, ensure the delivery of top-quality products, and maintain our industry leadership, driving excellence and innovation.
